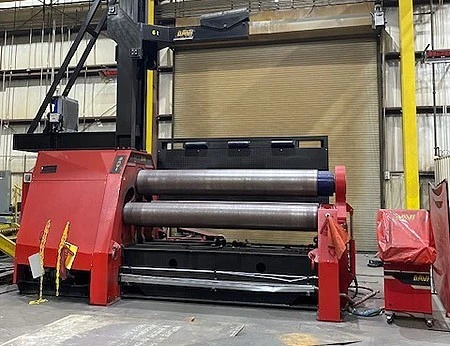

Davi MCB I30 1.62" x 10' 4-Roll Hydraulic Plate Bending Roll
Plate Bending Rolls including Pinch.jpeg)
.jpeg)
.jpg)
.jpeg)
Davi MCB I30 1.62" x 10' 4-Roll Hydraulic Plate Bending Roll
DAVI IROLL-AIDED" CNC CONTROL
ROLLS MATERIAL HIGH RESISTANCE, HEAT TREATED, TESTED & CERTIFIED CARBON STEEL
ROLLS CROWNING TOP AND LOWER
ROLLS GUIDING FRICTION-FREE, MILL-SCALE-PROOF, LUBRICATION-LESS PLANETARY GUIDES
ROLL POSITION LINEAR TRANSDUCER WITH AN ACCURACY OF 0.004”
TYPE OF BEARING ON ROLLS SELF-ALIGNING HEAVY DUTY DOUBLE CROWN SPHERICAL ROLLER BEARINGS
SERVO-TRONIC (DAVI PATENT)
ROLLS ROTATION DRIVE (DAVI EXCLUSIVE) BOTH CLAMPING ROLLS ARE DRIVEN IN ROTATION AS STANDARD FEATURE
RE-ROLLING DRIVE SYSTEM HIGH SPEED TOP ROLL ROTATION DURING RE-ROLLING AS STANDARD FEATURE
WIRING SYSTEM (DAVI EXCLUSIVE) ROLL-BY-WIRE DIGITAL TECHNOLOGY: FASTER, MORE ACCURATE AND RELIABLE
ROLLS TILTING FOR CONE BENDING
PLATE CLAMPING HYDRAULIC PRESSURE ELECTRONICALLY PRE-SETTABLE FOR ANY THICKNESS
ACTUATION OF YOKE & TOP ROLL TILTING HYDRAULIC WIDE OPENING, FOR EASIER REMOVE OF CLOSED SHAPES
ROLLS ROTATION HYDRAULIC BRAKE INCLUDED
NOTE:
NEW EXTRA ROLL INCLUDED
✓ DAVI IROLL-AIDED" CNC CONTROL
✓ ROLLS CROWNING TOP AND LOWER
✓ ROLLS GUIDING FRICTION-FREE, MILL-SCALE-PROOF, LUBRICATION-LESS PLANETARY GUIDES
✓ ROLL POSITION LINEAR TRANSDUCER WITH AN ACCURACY OF 0.004”
✓ ROLLS TILTING FOR CONE BENDING
| Length of Rolls | 122" |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH |
| Max Thickness | 18.82" |
| # Rolls | 4 |
| Hyd/Mech | Hyd |
| Power Rear Roll (Yes/No) | Yes |
| Power | 72 hp |
| Roll Diameter | 18.82" |
| Dimensions | 248" X 91" X 95" |
| Weight | 48,500 |
ROLL LENGTH 122"
TOP ROLL DIAMETER 18.2"
BOTTOM ROLL DIAMETER 16.6"
SIDE ROLLS DIAMETER 14.2"
ROLLING SPEED 20 FPM
MAIN DRIVE MOTOR 72 HP
APPROXIMATE DIMENSIONS 248" X 91" X 95"
APPROXIMATE WEIGHT 48,500 LBS
