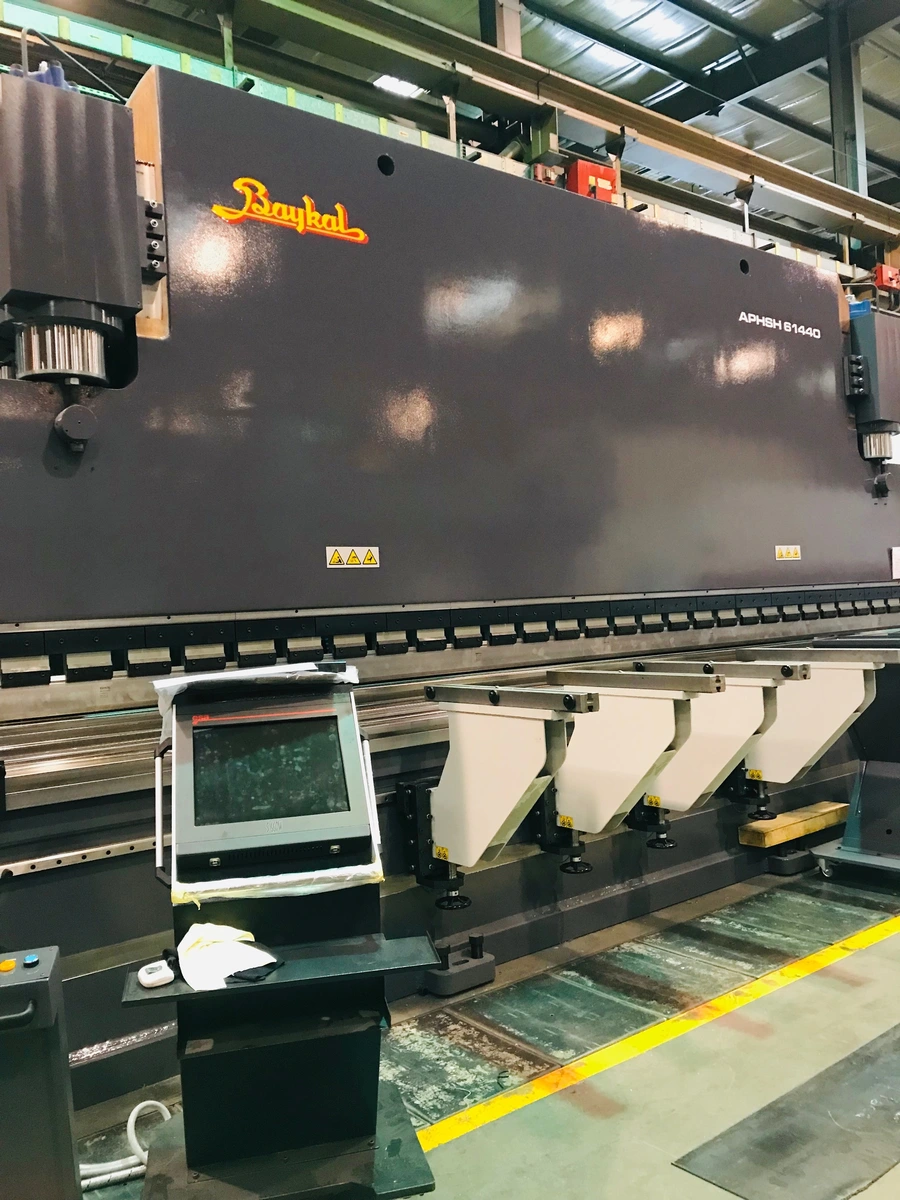

Baykal APHSH 61440 480 Ton X 20' 8-Axis CNC Press Brake
Brakes, Press
Baykal APHSH 61440 480 Ton X 20' 8-Axis CNC Press Brake
ESA 660 8-AXIS CNC CONTROL
6-AXIS CNC BACK GAUGE, R1,R2,X1,X2,Z1,Z2
2-AXIS PROGRAMMABLE RAM
CNC PROGRAMMABLE CROWNING
(4) FRONT SUPPORT ARMS
LASER GUARD AKAS
FLUSH FLOOR MOUNTED
NOTE:
INSPECT IN PLANT UNDER POWER
| Tonnage | 480 T |
| Type | HYD |
| OA Length | 240" |
| Between Housings | 200" |
| # Axis | 8 |
TONNAGE CAPACITY 480 TON
MAXIMUM BENDING LENGTH 240.15"
DISTANCE BETWEEN HOUSINGS 200.78"
BED HEIGHT 43.30"
STROKE 12.59"
OPEN HEIGHT 22.44"
THROAT DEPTH 19.68"
APPROACH SPEED 212.59 IPM
SPEED, WORKING 18.89 IPM
SPEED, RETURN TRAVERSE 165.35 IPM
MAIN MOTOR POWER 40 HP
APPROX. MACHINE DIMENSIONS L X W X H 250" X 89"X 147"
APPROX. MACHINE WEIGHT 85,800 LBS.
