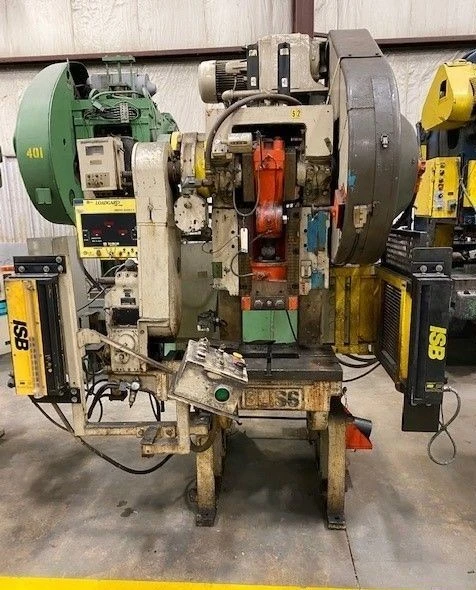

35 TON BLISS #C-35 O.B.I. PUNCH PRESS
Have one to sell?
ConditionUsed
1 available
35 TON BLISS #C-35 O.B.I. PUNCH PRESS
Model no. C-35
Air clutch & brake; air counterbalances; flywheel type
Stroke: 3"
Slide adjustment: 2-1/2"
Shut height S.D.A.U.: 10-3/4" to top of bed
Area of bed: 26-1/2" L-R x 17" F-B
Bolster thickness: 2"
Area of slide: 11" L-R x 8-3/4" F-B
Shank hole diameter: 2"
Throat depth: 9"
Opening through back: 12-1/2"
Floor to top of bed: 33"
S.P.M. approx.: 120 (variable)
Dual palm buttons for run with emergency &
top stop buttons
Push-pull button for start - stop
Key selector switch for inch - off - single - cont -
forward - reverse
One shot oil lubrication
Top stop adjustment knob for fast - slow
Pushbuttons for speed adjustment fast - slow
Rotary cam limit switches
Knockout slot in slide
Air surge tank
Approx. 3 HP 480 volts variable speed motor
Weight approx. 6,800 lbs.
Overall dimensions approx. 77" L-R x 72" F-B x 100" H
