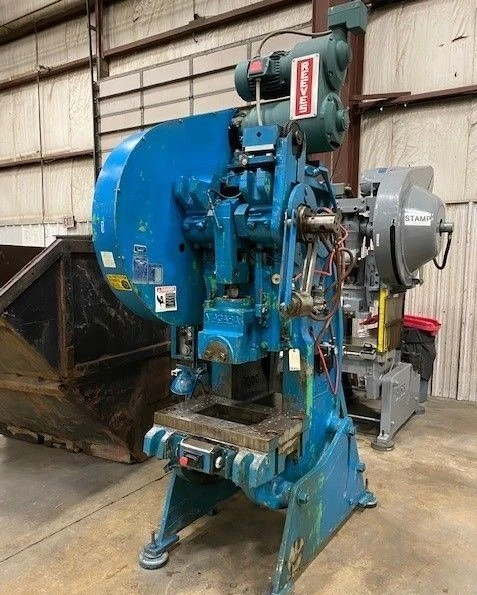

45 TON NIAGARA #AF3-1/2 O.B.I. PUNCH PRESS
Have one to sell?
ConditionUsed
1 available
45 TON NIAGARA #AF3-1/2 O.B.I. PUNCH PRESS
Model no. AF3-1/2; air clutch & brake; flywheel type
Stroke: 3"
Slide adjustment: 2-5/8"
Shut height S.D.A.U.: 12-1/4" to top of bed
Area of bed: 28" L-R x 18" F-B
Bolster thickness: 2-1/2"
Area of slide: 11-3/4" L-R x 13-3/4" F-B
Shank hole diameter: 2"
Throat depth: 10"
Opening through back: 13"
Floor to top of bed: 30"
S.P.M. approx.: 60-120
EQUIPPED WITH:
Dual palm buttons for run with emergency stop button
Pushbuttons for forward - reverse - continuous - jog &
fast - slow
Key selector switch for jog - run - continuous - off
Rotary cam limit switches
Bijur automatic oil lubrication
Air surge tank
Inclining mechanism
Knockout slot in slide
5 HP 1730 RPM 230/460/3/60 Reeves variable speed motor
Weight approx. 8,000 lbs.
Overall dimensions approx. 53" L-R x 70" F-B x 120" H
Stroke: 3"
Slide adjustment: 2-5/8"
Shut height S.D.A.U.: 12-1/4" to top of bed
Area of bed: 28" L-R x 18" F-B
Bolster thickness: 2-1/2"
Area of slide: 11-3/4" L-R x 13-3/4" F-B
Shank hole diameter: 2"
Throat depth: 10"
Opening through back: 13"
Floor to top of bed: 30"
S.P.M. approx.: 60-120
