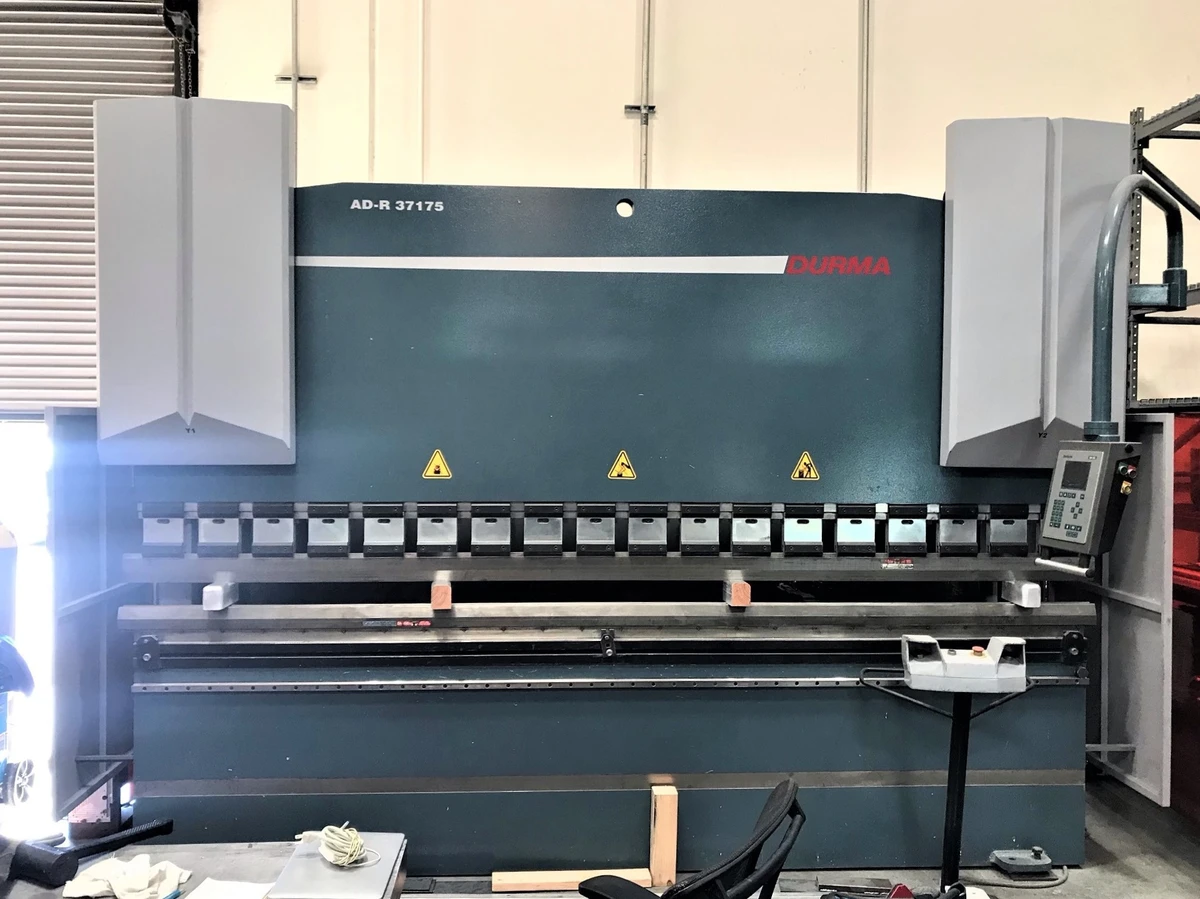

192 Ton Durma Hydraulic Press Brake, Model AD-R 37175
Press Brakes
192 Ton Durma Hydraulic Press Brake, Model AD-R 37175
Delem DA-52 Cnc Control
Y1, Y2 Ram Positioning
X-Axis Back Gauge with Fingertip Lateral Adjustment
Manual Z-Axis, never Used
Misc. 12' full length Dies
Machine is Under Power
4,400 Hours on Machine
Freestanding Floor Control Console
Approx. 18 Upper Die Clamps
| Tonnage | 195 T |
| OA Length | 145" |
| Between Housings | 122" |
| Stroke | 10" |
| # Axis | 3 |
| Control | CNC (Delem DA-52 Cnc Control) |
| Dimensions | 195" L x 67" FB x 109" High |
| Weight | 29,000 Lbs. |
Bending Force 195 Ton
Bending Length 145"
Distance Between Housings 122"
Y-Axis Rapid Speed 283
Y-Axis Working Speed 24
Y-Axis Return Speed 236
Dalight 21"
Table Width 4"
Table Height 35"
Stroke 10"
Throat Depth 16"
X-Axis Speed 590
X-Axis Travel 25.6"
motor 25 Hp
Overall Dimensions 195" L x 67" FB x 109" High
Weight, Approx. 29,000 Lbs.
