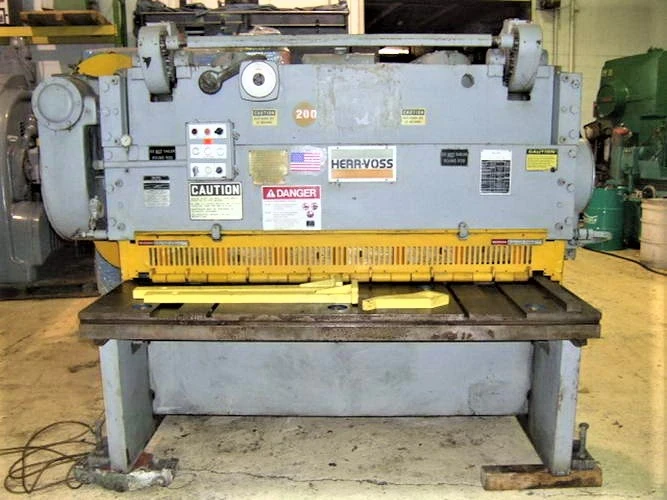

6 X 1/2 HERR VOSS/LODGE & SHIPLEY POWER SQUARING SHEAR

Description

6 X 1/2 HERR VOSS/LODGE & SHIPLEY POWER SQUARING SHEAR

MODEL ........................... 0806
CAPACITY ........................ 6 X 1/2" MILD STEEL

DISTANCE BETWEEN HOUSINGS ....... 64"
BLADE THICKNESS ................. 1-1/8"
BLADE RAKE PER FOOT ............. 3/8"
THROAT DEPTH .................... 18"
SPEED ........................... 40 SPM
NUMBER OF HOLDDOWNS ............. 7
TOTAL HOLD DOWN PRESSURE ........ 11-3/4 TONS
BED HEIGHT ABOVE FLOOR .......... 32"
FRONT OPERATED POWER BACK GAUGE . 36"
FLUSH FLOOR DESIGN .............. YES
MOTOR ........................... 15 HORSEPOWER
