Used PACIFIC 400-16 | Brakes, Press

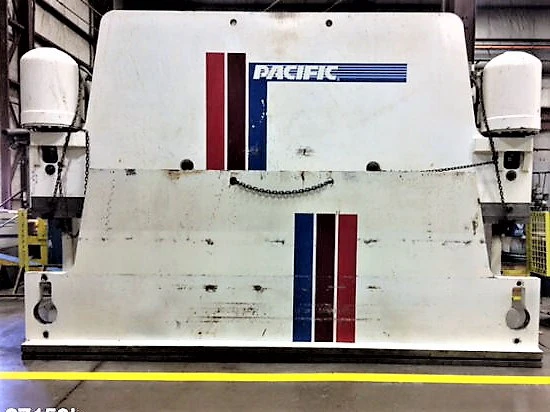

16 FT. X 5/16" PACIFIC HYDRAULIC BRAKE
Model 400-16

Bending capacities: 16' x 5/16" mild steel
15'6" x 3/8" mild steel
12' x 7/16" mild steel
10' x 1/2" mild steel
Tonnage capacity: 400 tons
Overall length of bed & ram: 16'
Distance between housings: 172"
Stroke: 12"
Open height: 20"
Closed height: 8"
Throat depth: 10"
Width of bed: 10"
EQUIPPED WITH: Electric foot switch
Pushbuttons for start - stop
Selector switches for cycle - inch - rapid advance -
normal press
Ram tilt adjustment
Stroke length adjustment
Micrometer depth stop
Dovetail slots in front & back of bed
Hydraulic pump, driven by
40 HP 1800 RPM 460/3/60 motor
Overall dimensions approx. 200" L-R x 71" F-B x 131" H
(39" pit required)
