Used L&J 36 | Presses, O.B.I.

36 Ton L&J #36, 3" str., 9" SH, 26" x 15" bed, v/s, #27692

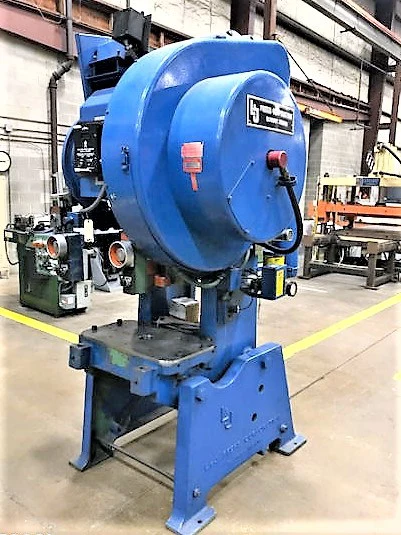

USED 36 TON L & J O.B.I. PUNCH PRESS
Model no. 36
Air clutch & brake
Flywheel type
Stroke: 3"
Slide adjustment: 3"
Shut height S.D.A.U.: 9" to top of bed
Area of bed: 26-1/2" L-R x 15" F-B
Bolster thickness: 1/2"
Area of slide: 11-3/4" L-R x 7-1/2" F-B
Shank hole diameter: 1-9/16"
Throat depth: 8-1/4"
Opening through back: 14"
Floor to top of bed: 32"
S.P.M. approx.: 120 (variable)
EQUIPPED WITH: Dual palm buttons for run
Push-pull button for start - stop
Selector switch for speed control fast -
slow - inch - single - continuous
Key selector switch for forward - reverse
Link-Logic brake monitor
Rotary cam limit switches
Automatic oil lubrication
Air surge tank
Knockout slot in slide
5 HP 1740 RPM 230/460/3/60 Reeves
variable speed drive motor
Weight approx. 5,600 lbs.
Overall dimensions approx. 57" L-R x 70" F-B x 96" H
