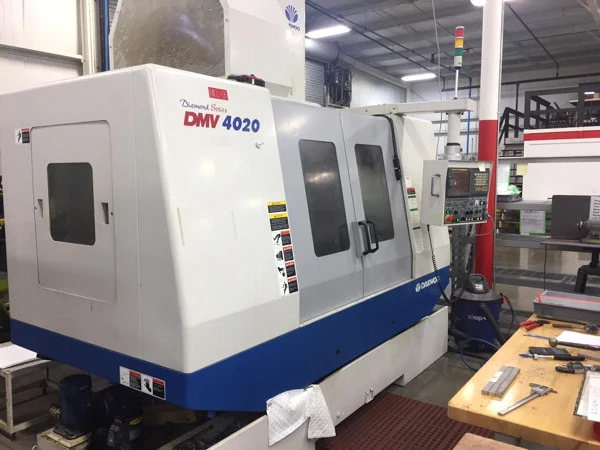

2005 Doosan Diamond Seris DMV4020 Vertical Machining Center

Table Size : 47" X 20"
Maximum Table Load: 1,760 Lbs
X Axis Travel: 40.1"
Y Axis Travel: 20.1"
Z Axis Travel: 24.6"
Spindle Nose To Table Top: 6" - 31"
Rapid Traverse Rate X & Y Axes: 1181 Ipm
Rapid Traverse Rate Z Axis: 945 Ipm
Spindle Taper: Cat 40
Spindle Speeds: 50 to 12000 Rpm
Spindle Motor: 20 Hp
Tool Changer Capacity: 24 Side Mount
Current Electrical Arrangement: 220/3/60

Equipped With

5th Axis Tsudakoma TN-160 5th Axis Trunnion Table ( Additional Cost )
Fanuc 21i-MB CNC Color Control,
RS-232C Port Interface For DNC Operation,
Rigid Tapping (Synch - Solid Tap)
Wired for 4th and 5th Axis
Hand-Held Remote Pulse Generator,
Custom Macro B
Coolant System
Kaukan Spindle Chiller
Full Enlcosures
Box Way Construction

Approximate Dimensions: 129"(LR) X 107"(FB) X 116"(H)
Approximate Weight: 15,800 Lbs.
