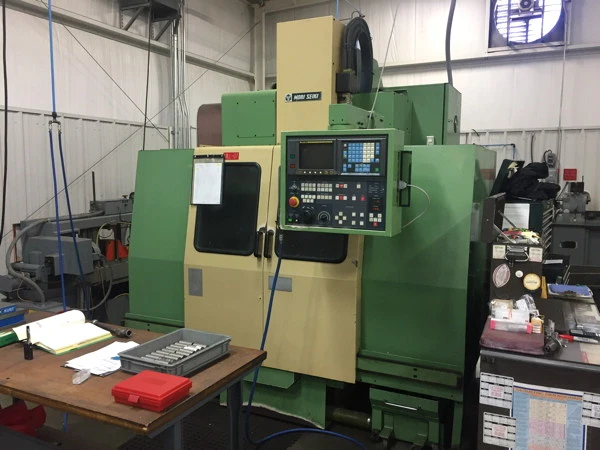

1991 Mori Seiki Model MV-40B 4 Axis Vertical Machining Center

X Travel (Longitudinal): 31.5"
Y Travel (Cross): 16.1"
Z Travel (Vertical): 20.1"
Table Working Surface: 43.3" x 17.7"
Table Work Load Capacity: 1540 LBS
Spindle Horsepower: 10 HP
Spindle Speeds: 30-8000 RPM
Spindle Taper: 40 Cat
Feed Rates: 0.1 to 400 IPM
Rapid Traverse: 400 IPM
Tool Storage Capacity: 20
Approximate Dimensions: 110" x 87"
Approximate Height: 106"
Approximate Weight: 12,000 LBS


Equipped With

Mori Fanuc MF-M6 CNC Control
20 Position Side Mount Tool Changer
Wire For 4th Axis ( Table Available at Additional Cost )
Full Height Guarding
