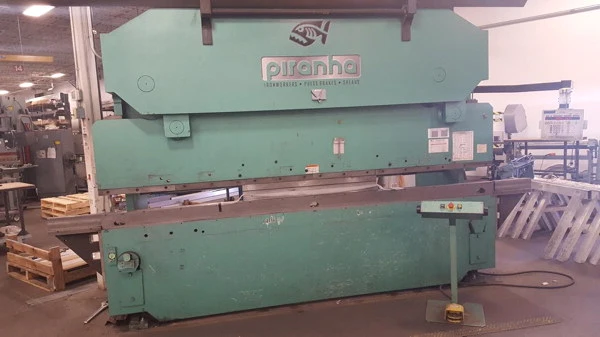

2001 PIRANHA 175-12

2001 Piranha Model 17512 175 Ton X 12' Hydraulic Press Brake

Tonnage Capacity: 175 Ton
Overall Length of Bed And Ram: 144"
Distance Between Housings: 126"
Stroke length: 8"
Open Height: 17"
Approach Speed: 2.6 IPS
Pressing Speed: .27-.60 IPS
Main Motor Drive: 25 HP
Oil Capacity: 200 Gallons
Electrical: 208Volt, 3 Phase
Dimensions: 144" X 53" X 108"

Equipped with:

Automec CNC 300 3 axis gauge - Front operated NC control power back gauge.
Flush floor design - No pit required
Lower die holder
Palm buttons/footswitch pendant
Tilting Bed Control via wedge
Back Gauge has 4 stops adjustable along rail to the length of your part.
