Used 1998 HITACHI SEIKI HS630 | Machining Systems, Flexible

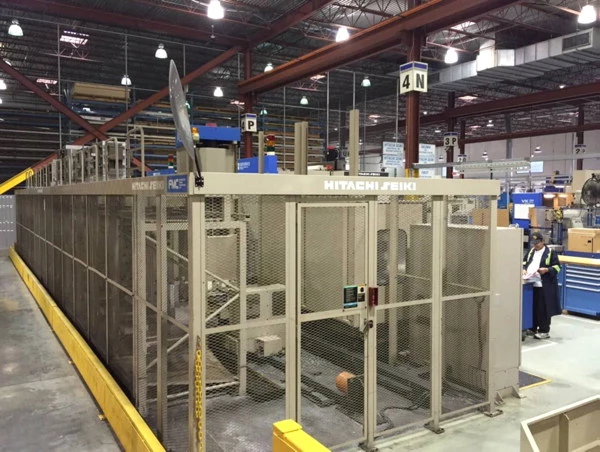

1998 Hitachi Seiki Model HS630 24 Pallet Flexible Machining Cell

(2) 4 Axis HS630 Machines

(24) Position Model PL630 Pallet Changer

Pallet size 24.8" x 24.8"
Table indexing 1 Deg. Index
Table Load capacity 2,640 lbs
X-Axis Travel 32"
Y-Axis Travel 31.5"
Z-Axis Travel 31.5"
Spindle Nose Cat #50
Spindle Speed 10,000 RPM
Spindle Motor 30 Min./Cont. 40 HP
Tool Magazine Capacity 120 Position ATC
Max. Tool Diam./Length 9.65"/15.7"
Max. Tool Weight 77 lbs
Rapid traverse 1771 IPM
Cutting feedrates 787 IPM Machine weight 36,800 Lbs
Motor Specifications
Not Available

Equipped With

Fanuc 16iM (Seicos Sigma 10M)CNC Controls
Micon III
Chip Conveyors
Coordinate System Rotation, Rigid Tapping
Tool Length & Broken Tool Detection
99 Tool Length Offsets, Helical Interpolation
Macro B 100 Variables
