2009 DOOSAN PUMA 700L

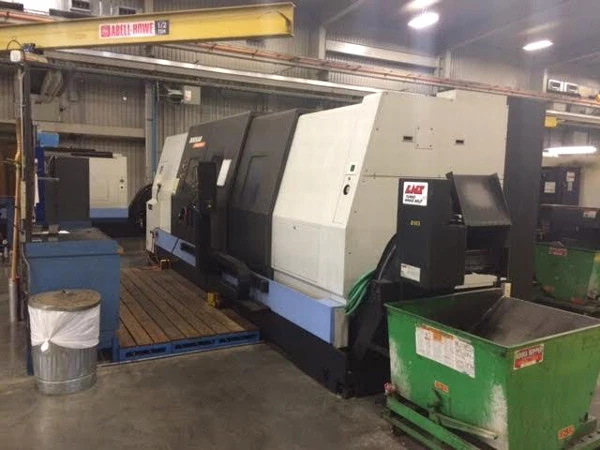

2009 Doosan Model Puma 700L 40" x 120" Slant Bed Big Bore CNC Lathe

Swing Over Bed: 40.55"
Max Turning Diameter: 35.4"
Max Turning Length: 126"
X Axis Travel: 18.5"
Z Axis Travel: 127.4"
Max Spindle Speed: 1500 RPM
Main Motor Drive: 60HP
Spindle Nose: A1-15
Spindle Bore: 7.1"
Bar Capacity: 6.1"
Turret Positions: 12
Rapid X Travels: 474 ipm/ 393 ipm

Equipped With

Fanuc 21iTB
18.75" Chuck
Tool Presetter
LNS Chip Conveyor
Long Boring Bar Option
Steady Rest
Tailstock
Tool Holders
Manuals

Approximate Dimensions: 335"(LR) X 109"(FB) X 102"(H)
Approximate Weight: 49,000 Lbs.
