Used 2005 TOYODA FA630 | Machining Centers, Horizontal

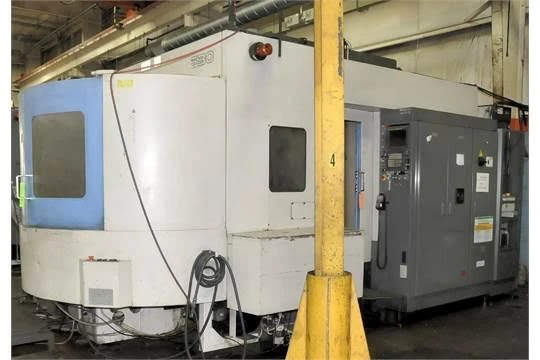

2005 Toyoda Model FA630 4 Axis Horizontal Machining Center

Number of Pallets: 2
Pallet Size: 24.8" X 24.8"
Pallet Workload Capacity:
X-Axis Travel: 39.37"
Y-Axis Travel: 33.46"
Z-Axis Travel: 29.52"
B-Axis (Rotary 1 degree
Spindle Nose to Center of Rotary Table: 6.9 - 36.4 in (175 - 925 mm)
Spindle Speed: 6000 RPM
Spindle Taper: CT 50
Tool Capacity: 120 ATC
Spindle Motor: 30/25 HP


Equipped with:

Fanuc 16iMB CNC Control
Through Spindle Coolant 800 PSI
Chip Conveyor
Touch Sensor
