Used 2015 DOOSAN OUMA GT2600L | Lathes, CNC

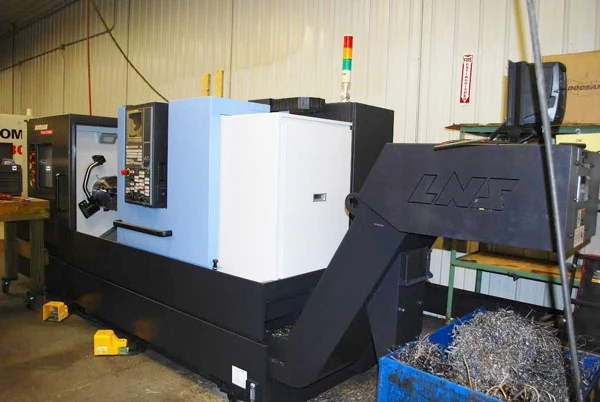

2015 Doosan Model GT2600L 2-Axis CNC Lathe

Max. Turning Diameter: 18.1"
Max. Turning Length: 39.3"
Standard Chuck Size: 12"
Bar Working Diameter: 3.1"
Max. Spindle Speed: 3500
Max. Spindle Motor: 30 HP
Tool Capacity: 12 TRT





Equipped with:

FANUC 0i-TD control with swiveling operators panel
Large 10.4" color LCD display with QWERTY keyboard
EOP - Easy Operations Package
Samchully 12" 3-Jaw Chuck
Turbo Side Discharge Chip Conveyor
145 PSI Coolant Pump System
45KVA Transformer 240-208
Rigid 30 degree one piece cast iron slant bed
Wide box way construction with Turcite-B anti-friction way surfaces
High precision, pre-tensioned X & Z axes double nut ball screws with elecn
12 Station heavy duty servo controlled turret (.15 second turret swivel)
30 HP High Speed - high torque digital AC spindle motor
Large 18.1" maximum turning diameter
Large 3.19" bar capacity
42.4" maximum turning length
Fast 1,181 ipm Z-Axis rapid traverse
Full sliding cover protection for tail stock guide ways
Bolt up chip conveyor design for easy access and removal of coolant tank
Doosan EZ Guide i Conversational Programming
Doosan Tool Load Monitoring System
Programmable hydraulic tail stock (body clamp, drive pin and quill) - MT r
Tool setter
Rigid Tapping
Separate coolant tank with way lube oil skimmer
Operations manuals, maintenance manuals, parts list,
electrical drawings and factory test report
