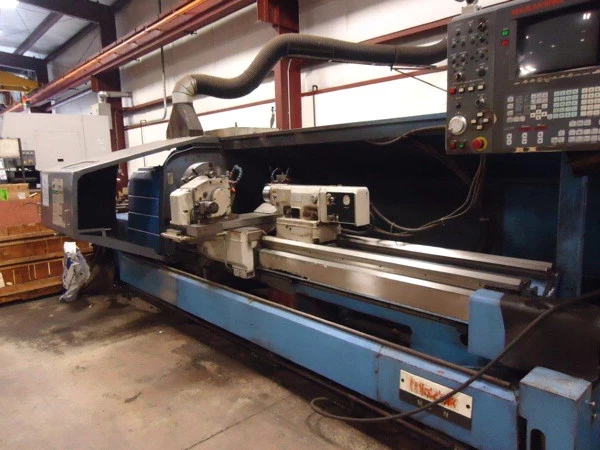

1998 Mazak Model M-5N X 80 CNC Flat Bed Lathe

Swing Over Bed: 24"
Swing Over Cross Slide: 13"
Distance Between Centers: 82"
Spindle Bore: 4.1"
Spindle Speed: 1000 RPM
Turret Type
Front:.Vertical Disc
Rear: Hexagonal Boring
Number of Tools: 14
X-Axis Turret Stroke: 21.25"
Z-Axis Turret Stroke: 81"
Rapid Traverse Rates
X Axis: 394 IPM
Z Axis: 394 IPM
Tailstock Spindle Travel: 5.12"
Diameter of Tailstock: 3.9"
Tailstock Center: MT # 5
Main Motor: AC 25/30 HP
Machine Weight: 14,300 Lbs.


Equipped with:

Mazatrol T-Plus CNC Control w/ 12" Monochrome CRT and Conv. Prog.
24" Chuck
(2) Steady Rests
(8) Front OD Turret Positions / (6) Rear ID Turret Positions
Chip Conveyor
