Used 2010 OKUMA VTM-120YB | Lathes, VTL (Vertical Turret Lathe)

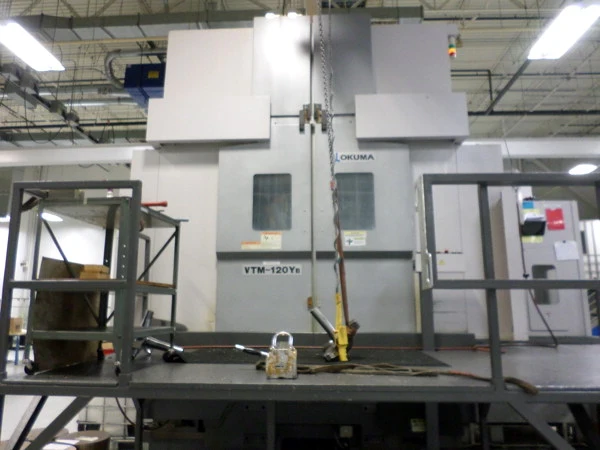

2010 Okuma Model VTM-120YB 5-Axis CNC Vertical Turret Lathe

Chuck Diameter: 49.21"
Maximum Cutting Diameter: 47.24"
Maximum Cutting Length: 42.52"
X-Axis Travel: 50"
Y-Axis Travel: 39.37""
Z-Axis Travel: 42.52"
B-Axis Travel Head Tilt/Indexing: 90 deg./1 deg.
Rapid Traverse X/Y/Z: 52.50 IPM
Rapid Traverse C: 20 IPM
Spindle Speed: 6~600
Spindle Power: 40/30 HP
Spindle Taper: 50
Tool Capacity: 60 ATC

Equipped with:

OSP-P200 CNC Control
5 Axis Articulating Live Milling Head
Chip Conveyor
MP High Pressure Pump
