Used 2001 GEMINIS GHT 4 | Lathes, CNC

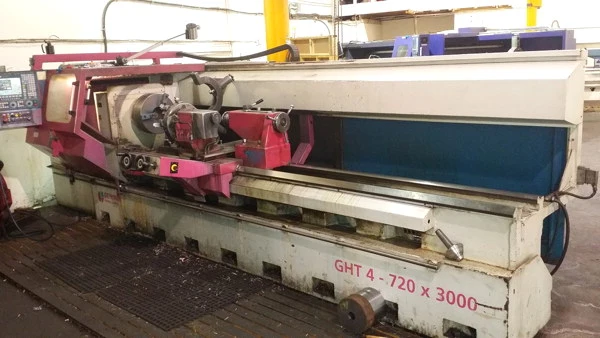

2001 Geminis Model GHT 4 720X3000 Flat Bed CNC Lathe

Swing Over Bed: 28"
Swing Over Carriage: 18.5"
Distance between Centers: 118"
Spindle Bore Diameter: 4.1"
Spindle Speeds: 300-1200 RPM
Capacity Between Centers: 5600 lbs
Turret Positions: 8 Position
Main Motor Drive: 23 HP

Equipped With:


Fagor 8055 control with expanded memory
15" 3 Jaw Chuck
4 Jaw Chuck
Tailstock
(2) Strady Rests
Misc Tool Holder

Approximate Dimensions: 212"(LR) X 78"(FB) X 71"(H)
Approximate Weight: 12,600 Lbs.
