Used 2012 YAMA SEIKI GV1200 | Lathes, CNC

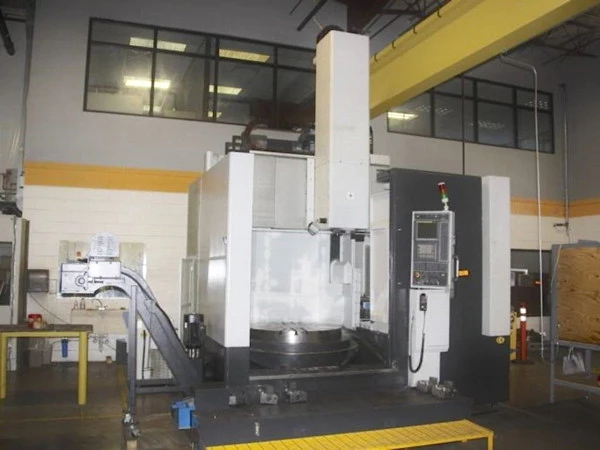

2012 YAMA SEIKI Model GV1200 49" CNC Vertical Turning Center

Max Swing: 63"
Max. Turning Diameter: 53"
Maximum Turning Length: 51"
Table Diameter: 49" (4 Jaw Table)
Table Load Capacity: 11000 lbs
Taper: 50
Spindle Speeds: 20-2,000 RPM
Spindle Nose: A2-11
X-Axis Travel: 45"
Z-Axis Travel: 35"
Rapid Traverse X, Z: 472 IPM, 394 IPM
Main Motor Drive: 50 HP

Equipped With:

Fanuc 0itd Series CNC Control
49" 4 Jaw Table
16 Position ATC
Chip Conveyor
Chiller
Aprox $20,000 in tooling
Manual Pulse Generator Remote Jog Handwheel

Approximate Dimensions: 140"(LR) X 145"(FB) X 208"(H)
Approximate Weight: 51,000 Lbs.
