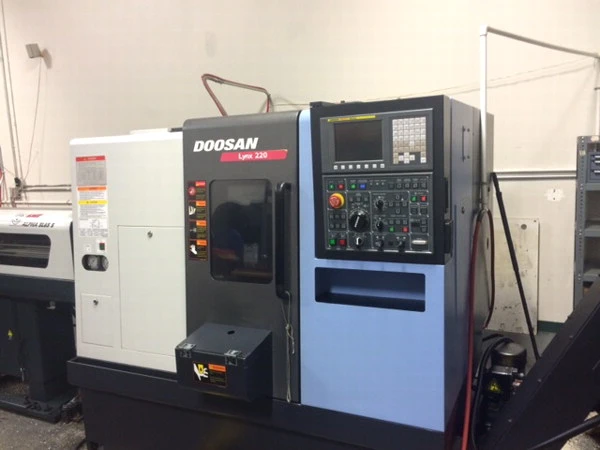

2013 Doosan Model Lynx 220 2 Axis Slant Bed CNC Lathe
2013 Doosan Model Lynx 220 2 Axis Slant Bed CNC Lathe
Max Swing Over Bed: 20.08"
Max Swing Over Saddle: 11.42"
Max Turning Diameter: 12.6"
Max Turning Length: 12.68"
Spindle Speeds: 6,000 Max RPM
Spindle Drive: 20 HP
Spindle Nose: A2-5
Hole Thru Spindle: 2.09"
Hole Thru Draw Tube: 1.8" Bar Capacity
Turret Capacity: 12 Stations
Turret Travels (X,Z): 6.9" x 12.99"
Rapid Traverse Rate (X/Z): 1,181 IPM
Equipped with:
Fanuc 0iTB CNC Control
6.5" 3-Jaw Hydraulic Chuck
Parts Catcher
Tool Eye
LNS Alpha SL65 S Bar Feed
Programmable Tailstock
Spindle Orientation
Chip Conveyor
All Available Manuals
