Used 2013 MORI SEIKI NTX1000 HSCZM | Lathes, CNC

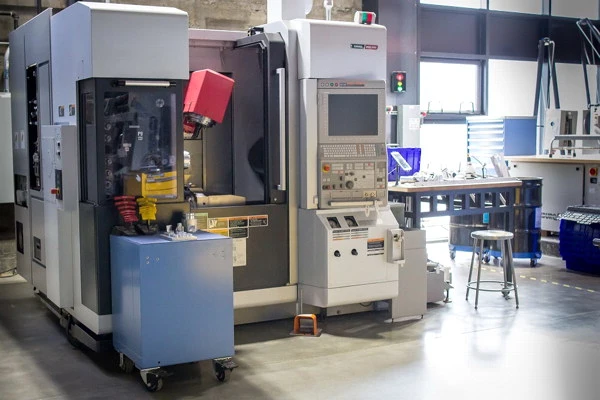

2013 Mori Seiki Model NTX1000 HSCZM CNC Multi Tasking Lathe

**** Under 100 Hours **** HSC High Speed Tool Spindle ****


Max. Swing of Workpiece: 14.5"
Swing Over Cross Slide: 14.5", 11.8"
Max. Turning Diameter: 14.5", 10.6"
Max. Turning Length: 16.6"
Bar Capacity: 2.5"
X-Axis Travel: (15") (13") (2")
Y-Axis Travel: (4.1")
Z-Axis Travel: (18.1"+6.1")
B-Axis Travel: +/- 120 degrees
X2-Axis Travel: 6.1"
Z2-Axis Travel: 24"
BW Axis:
Max. Spindle Speed: 6,000 RPM
Spindle Nose: A2-5
Through Spindle Hole Diameter: 2.9"
Min. Spindle Indexing Increment: 0.0001 degree
Spindle Bearing Inner Diameter: 3.9"
Spindle Torque: 116 ft. lbs.
WORKPIECE DISCHARGE UNIT
Allowable Rotational Speed: 1,000 RPM
Bearing ID:
TOOL SPINDLE (Turret 1)
Number of Tool Stations: 1
Min. B-axis Indexing Increment: 0.0001 degree
Max. Tool Spindle Speed: 20,000 RPM
Taper Hole of Rotary Tool spindle: Capto C5
Type of Retention Knob:
Inner Diameter of Rotary Tool Spindle Bearing:2.5"
Tool Storage Capacity: 38
Max. Tool Diameter: 2.7"
Max. Tool Length: 9.8"
Max. Tool Mass: 11 Lb
Tool Change Time: 1.2 seconds
TURRET 2
Number of Tool Stations: 10
Turret Indexing Time: .19 seconds
Shank Height for Square Tool: 0.8"
Shank Diameter for Boring Bar: 1.2"
Max. Rotary Tool spindle Speed: 6,000 RPM
Spindle Torque: 3.5/1.7 ft. lb.
Feedrate Tool Spindle (X,Y): 1574 IPM
Feedrate Tool Spindle (Z): 1968 IPM
Feedrate Turret 2 X2: 787 IPM
Feedrate Turret 2 Z2: 1417 IPM
Spindle Drive Motor: 7.5 HP
Power Source:
Dimensions: 100" x 106" x 94"
Weight: 19,800 Lbs

Equipped with:

Work Piece Position Error Compensation
All Contour Control II
Chuck
Program Restart
Air Blow for Tool Tip
Diameter, Radius Dynamic Switching Function
Tailstock Barrier
Programmable Mirror Image
DXF Import Function
Tool Retract & Recover
Hypothetical Axis Interpolation
Smooth Interpolation
NURBS Interpolation
Single Direction Positioning
Involute Interpolation
300 Additional Workpiece Coordinate Systems
Automatic Tool Nose Offset System
Manual Hand Inerruption
Programming Resolution Multiplied by 1/10
Signal Tower 3 layers
Work piece Conveyor
Work Piece ejector
Mist Collector

Over $200,000 in Tooling
