Used 2014 DOOSAN NHM-8000 | Machining Centers, Horizontal

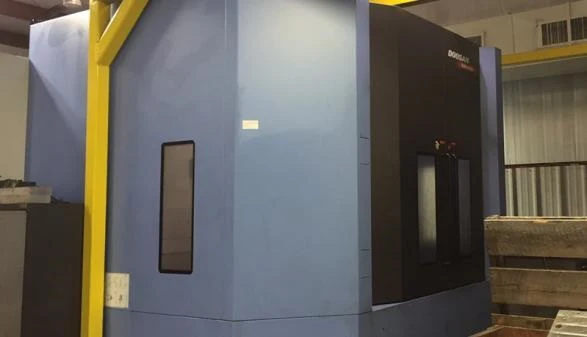

2014 Doosan Model NHM-8000 4-Axis CNC Horizontal Machining Center

Pallet Size: 31.5" X 31.5"
X-Axis Travel: 55.1"
Y-Axis Travel: 41.3"
Z-Axis Travel: 47.2"
Table Indexing: Full B-Axis (.001 Degrees)
Pallet Weight Capacity: 4400 LBS.
Spindle Drive Motor: 47 HP
Spindle Speed: 8000 RPM
Spindle Taper: CAT 50
Rapid Traverse Rate: 1181 IPM (X,Y,Z)
Tool Capacity: 90 ATC


Equipped with:

Fanuc 31iB CNC Control
Thru Spindle Coolant (230 psi)
Air Thru Spindle
Big Plus Spindle (standard)
Oil Jacket Spindle Cooler
Tapped Pallets
Chip Conveyor
Customer to Provide Transformer
Power On Hours - 4756
Run Time Hours - 2169
Cutting Time Hours - 931
