Used ROUSSELLE 6G | Presses, Gap Frame (OBS)

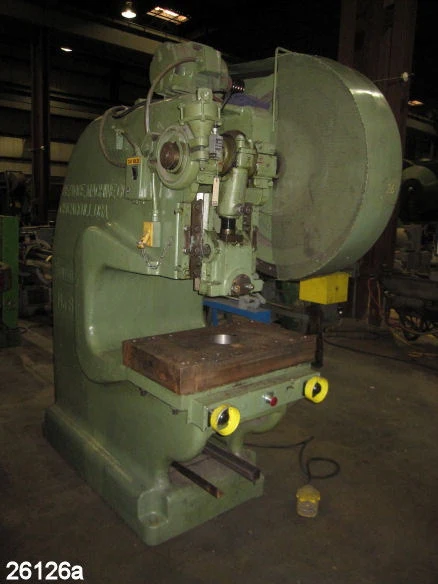

60 TON ROUSSELLE DEEP THROAT PUNCH PRESS
Model no. 6G
Air clutch & brake
Flywheel type
Stroke: 3"
Slide adjustment: 3-1/2"
Shut height S.D.A.U.: 12-1/2" to top of bed
Area of bed: 30-3/4" L-R x 18" F-B
Bolster thickness: 4-1/2"
Area of slide: 12-1/4" L-R x 8-1/2" F-B
Shank hole diameter: 2"
Throat depth: 24"
Floor to top of bed: 33-1/2"
S.P.M. approx.: 110
EQUIPPED WITH: Dual palm buttons for run with
emergency & top stop buttons
Electric foot switch
Selector switch for inch - run -
hand - foot
Knockout slot in slide
5 HP 1145 RPM 230/460/3/60 motor
Weight approx. 9200#
Overall dimensions approx. 44" L-R x 80" F-B x 96" H
Serial no. FGA11469
