Used 1945 CHICAGO DREIS & KRUMP 228 | Brakes, Press
Have one to sell?
ConditionUsed
1 available

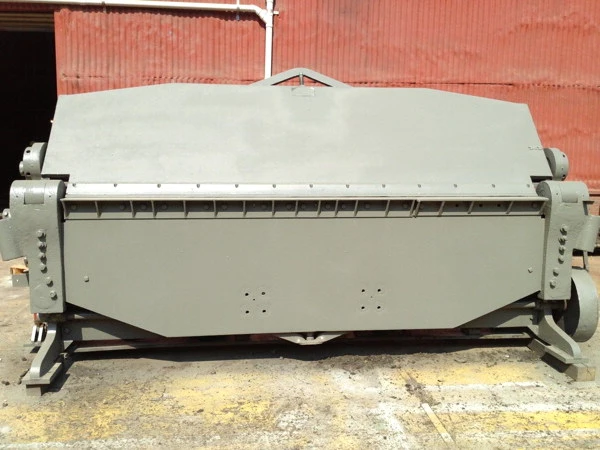

1945 Chicago D&K Dreis & Krump Model 228 1/2" X 12' Power Leaf Brake
1945 Chicago D&K Dreis & Krump Model 228 1/2" X 12' Power Leaf Brake
Maximum sheet length: 12'
Maximum sheet thickness: 1/2"
Min flange on capacity material: 4"
Main Motor Dirve: 40HP
Current Electrical Arrangement: 440/3/60
Additional features:
Hydraulic Clamping
Full hydraulic conversion possible
Bends back to about 115 degrees
Approximate Dimensions: 204"(LR) X 78"(FB) X 98"(H)
Approximate Weight: 30,000 Lbs.
