Used 1963 WARNER & SWASEY 3A M-3500 | Lathes, Turret

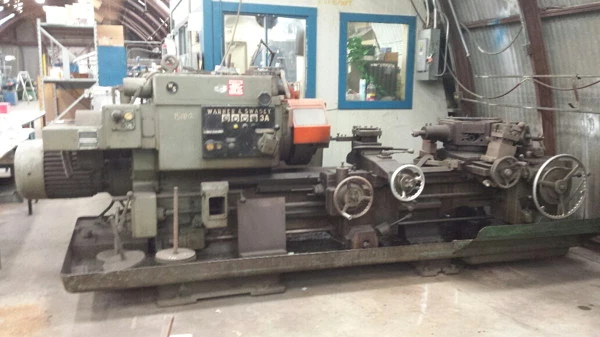

1963 Warner & Swasey Model 3A M-M3500 Saddle Type Turret Lathe

Swing over Carriage Guard: 23.5"
Hole thru Spindle: 6.25"
Spindle Nose, Type A 15 Cross Slide Travel 143/8"
Cross Slide Longitudinal Travel: 51"
Cross Feeds: (16) 0.0025 0.082
Longitudinal Feeds: (16) 0.005 0.167
Hexagon Turret with Cross Slide
Longitudinal Travel: 51"
Max. Distance - End of Spindle - Turret Face 59"
Spindle Speeds: 12-850 RPM
Spindle Motor: 20/40 Hp


Equipped with:

3 Jaw Air Chuck
