Used 2010 TOOLMEX TUR-630AMN/118 | Lathes, CNC

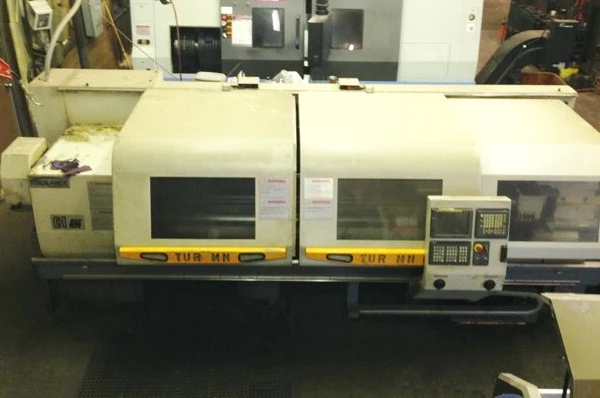

2010 Toolmex Model TUR-630AMN/118 2 Axis Flat Bed 24" x 120" CNC Lathe

Front and Rear Chuck

Swing Over Bed: 24"
Swing Over Cross Slide: 14.6"
Distance Between Centers: 120"
Spindle Bore: 5.5"
Spindle Speeds (21): 15-1400 RPM
Motor: 20 HP
Tool Capacity: 8 TRT
Cross Slide Travel: 13"
Carriage Length on Ways: 24"
Saddle Length Supporting Cross Slide: 36"
Top Slide Travel: 6"
Quill Diameter: 3.9"
Quill Travel: 8"
Current Electrical Arrangement: 230/3/60
Approx. Dimensions: 198" x 58" x 63"
Approx. Weight: 10,200 Lbs.


Equipped with:

Fanuc 21iTB CNC Control
(2) 15" Hollow Spindle Chucks
8 Position Turret
