Used 2012 MITSUBISHI MVR-30 | Machining Centers, Gantry & Double Column

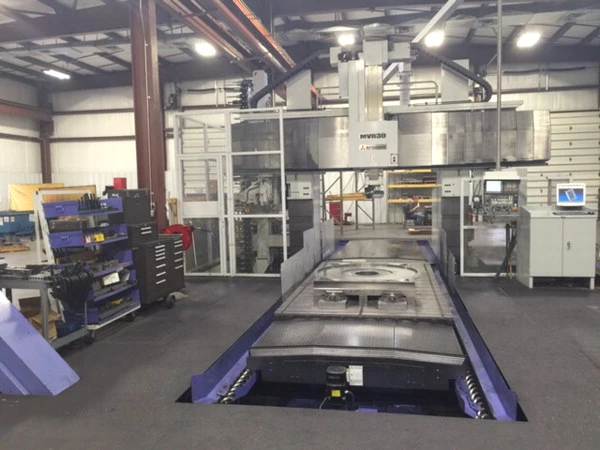

2012 Mitsubishi Model MVR-30 5 Face Double Column CNC Machining Center

Table Size: 157.5" X 78.74"
Distance Between Columns: 100.4"
Maximum Height Under Spindle Nose: 64.9"
X-Axis Travel (Table Longitudinal): 165.4"
Y-Axis Travel (Head): 118.1"
Z-Axis Travel (Spindle): 31.5"
W-Axis Travel (Crossrail): 43.6"
Spindle Speeds: 20-6000 RPM
Spindle Taper: CAT 50
Spindle Drive Motor: 40 HP / 30 HP



Equipped with:

Fanuc 31 I Control
Right Angle Head 1 Degree
Indexing, Auto Changing Storage Rack
5-Face Machining Software
80 ATC
Renishaw Probe
Rigid Tapping
Coolant/Air Through The Spindle and Extension Head
X Axis Screw Type Chip Conveyors
Belt Type Chip Conveyor
Helical Interpolation
Transformer: 460V Main
