Used ATLANTIC HDSY.PE | Brakes, Press

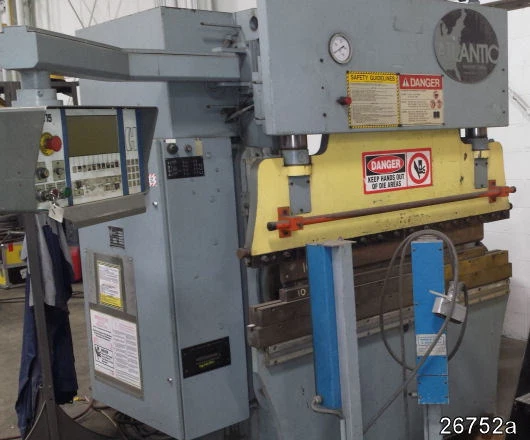

5 FT. X 3/16" ATLANTIC HYDRAULIC CNC BRAKE
Model no. HDSY.PC
Bending capacity: 5' x 10 ga. mild steel
Tonnage capacity: 60 tons
Overall length of bed & ram: 63"
Distance between housings: 43"
Stroke: 4"
Open height: 11.6"
Closed height: 7.6"
Throat depth: 8"
Width of bed: 3"
Speeds approx.: 175"/minute fast approach
19"/minute press
150"/minute fast return
EQUIPPED WITH: 24" Robosoft PC15 two axis CNC back gauge with
vertical adjustment
2-3/4" high die rail
Free standing control with dual palm buttons for run
& emergency stop button
Electric foot switch
Key selector switch for hand - foot
*Triad safety light curtain
Sectional ram die clamps
Hydraulic pump, driven by
10 HP 220/440/3/60 motor
Weight approx. 8,000 lbs.
Overall dimensions approx. 73" L-R x 89" F-B x 91" H
Serial no. 59402
Stock no. 26752

$14,500.00
