Used CINCINNATI SERIES 5 | Brakes, Press

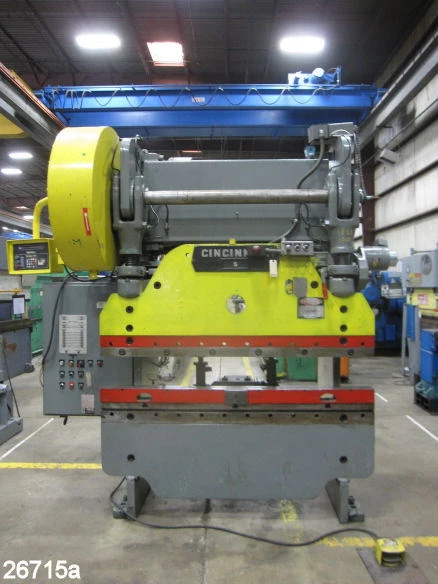

6 FT. X 1/4" CINCINNATI PRESS BRAKE WITH CNC BACK GAUGE
Series 5X4
Air clutch
Bending capacities: 6' x 1/4" mild steel
4' x 5/16" mild steel
Tonnage capacity: 90 tons @ midstroke
135 tons near bottom
Overall length of bed & ram: 6'
Distance between housings: 4'6"
Stroke: 3"
Ram adjustment: 5"
Shut height S.D.A.U.: 12"
Throat depth: 8"
Width of bed: 3.5"
Floor to top of bed: 32
S.P.M. approx.: 35
EQUIPPED WITH: 24" Hurco Autobend 5 programmable back gauge with
vertical adjustment (no cross bar)
3-1/4" high die rail
Electric foot switch
Bed & ram machined for angle front & back
Pushbuttons for start - stop
Key selector switches for inch - off - single &
motor forward - reverse
Power ram adjustment with control & position indicator
Brake monitor
Sectional ram die clamps
(3) T-slots in top of bed
Dovetail slots in front & back of bed
1/4 HP 1670 RPM 230/460/3/60 ram adjustment motor
10 HP 1630 RPM 230/460/3/60 motor
Weight approx. 13,000#
Overall dimensions approx. 105" L-R x 80" F-B x 105" H
Serial no. 39882
Stock no. 26715
FOB ELK GROVE VILLAGE, IL - $19,750.00
