Used 2001 AMERA SEIKI VA S-5M | Machining Centers, Vertical

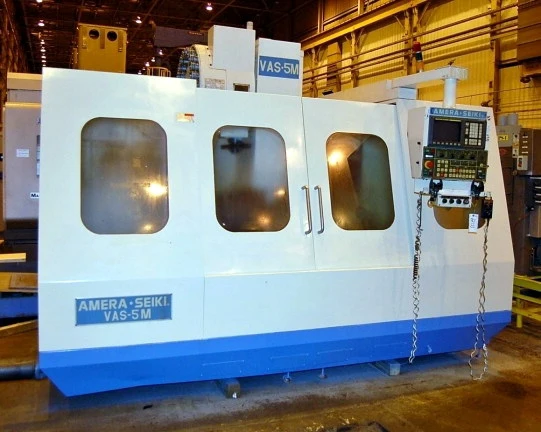

2001 AMERA SEIKI VAS-5M CNC VERTICAL MACHINING CENTER

FEATURES:

Fanuc 0MD CNC Controls

24-Position Automatic Tool Changer


CAPACITY:

X-Axis Travel 50.00"

Y-Axis Travel 26.50"

Z-Axis Travel 25.00"

Table Size 52" x 27"

Max Workpiece Weight 4200 Lbs

Spindle Speeds 30-7500 RPM

Spindle Taper CAT 40

Spindle Motor 20 HP AC

Tool Changer 24 ATC

Max Tool Length 9.5"

Max Tool Dia 3"

Max Tool Weight 12 Lbs

Rapids, XYZ Axes 944 IPM

Cutting Fees, XYZ Axes 394 IPM

Machine Dimensions 128" x 118"

Machine Weight 16,400 Lbs

Tool Change Time 3 Seconds

Chip To Chip 6 Seconds


EQUIPPED WITH:

Fanuc 0MD CNC, 32-Bit CPU, Hi-Speed Micro-Processor

24-Position Side Mounted Automatic Tool Changer

2-Speed Geared Head Spindle

Hardened & Ground Box Ways

Double Arm Tool Changer

Rigid Tapping

Programmable Coolant Nozzle

High Intensity Work Light

Machine Status Lights

4th-Axis Pre-Wire

Hydraulic Clamping

Chip Conveyor

Fully Enclosed Splash Guards

Spare Rebuilt Spindle
