Used 1990 MONARCH VMC 150 | Machining Centers, Vertical

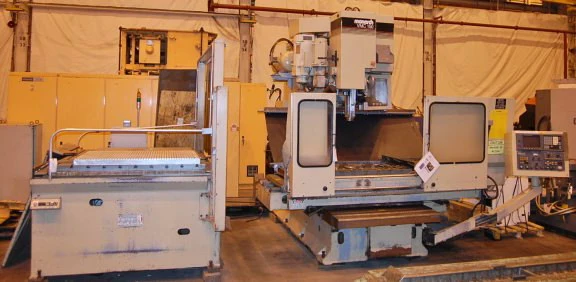

1990 MONARCH VMC-150 CNC VERTICAL MACHINING CENTER

FEATURES:

Fanuc 15MA CNC Control

2-Station Automatic Pallet Changer

40-Station Automatic Tool Changer


CAPACITIES:

X-Axis Travel, Table Back & Forth 50"

Y-Axis Travel, Saddle In & Out 36"

Z-Axis Travel, Quill Up & Down 10"

W-Axis Travel, Sliding Head Up-Down 23"

Pallet Changer 2 APC

Pallet Size 60" x 36"

Pallet Load Capacity 4000 Lbs

Spindle Speed, Max 5200 RPM

Spindle Taper 45 ASA

Spindle Drive Motor 20 HP / 15 HP

Milling Feedrates 0.01-400 IPM

Positioning Speed 600 IPM

Dimensions 170" x 161"

Height 124"

Approximate Weight 22,000 Lbs


EQUIPPED WITH:

Fanuc 15MA CNC Control

- 4200 Extra Memory, Coordinate Restart,

- Tool Life Management, Optional Block Skip

- Program Restart, Block Restart

- Angle Chamfer Corner Override, Auto Corner Override

- Tool Length Indicator, Scaling, Polar Coordinate Input

- Coordinate System Rotation, 48 Add'l Work Offsets

40-Station Automatic Tool Changer

2-Station Automatic Pallet Changer

Through Spindle Coolant (Pre-Plumbed)

Misc. Tooling
