Used 2004 MIKRON UCP 600 VARIO | Machining Centers, Vertical, (5-Axis or More)

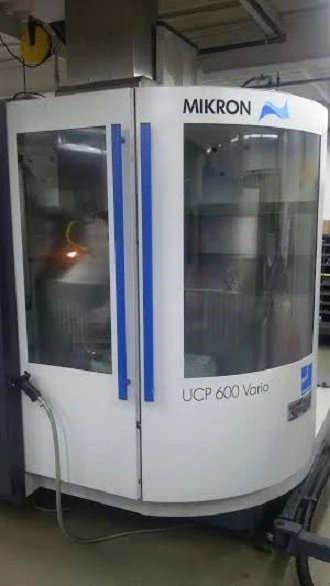

2006 Mikron UCP 600 Vario 5 Axis CNC High Speed Machining Center

Table, carriage (X,Y,Z,B,C): Gray cast iron
X-axis travel: 23.623 (600 mm)
Y-axis travel: 17.723 (450 mm)
Z-axis travel: 17.723 (450 mm)
B-axis travel: -115/+30 degrees
C-axis travel: n x 360
Rapid traverse (X,Y,Z): 866 in/min (22 m/min)
Maximum Acceleration: .6 m/s-2
Measurement system: 0.000043 (1 um) in glass scale positioning
Rotary tilt table size: Up to 17.713 diameter (450 mm)
Rotary tilt table, carrying capacity: 441 lbs (200 kg)
Spindle: 17 hp (13 kW)
Spindle speed: 100-42,000 rpm
Spindle torque: 3.1 ft. lbs. (4.2 Nm)
Spindle taper: HSK E 40
Automatic tool changer capacity: 36
Maximum tool diameter: 0.6253 (16 mm)
Maximum tool length from the spindle nose:4.724413 (120 mm)
Maximum tool weight: 2.2 lbs (1 kg)



Equipped with:

HEIDENHAIN iTNC530 control
Full cabin enclosure
Chip conveyor (long) option
Tool cleaning by air blast
Preparation for touch probe
Oil mist coolant spray unit
Laser tool measuring
Scratch proof screens for full machine enclosure
Tilt the working plane iTNC530
