Used 2001 SOUTHWESTERN INDUSTRIES TRAK DPM | Millers, Bed Type

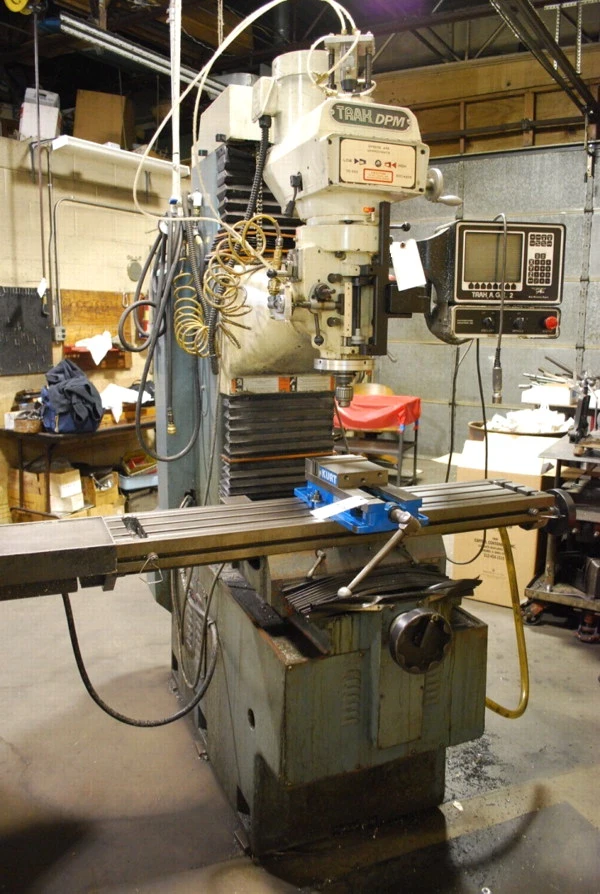

2001 Southwestern Industries TRAK DPM CNC Vertical Bed Mill

Table area: 50" X 10"
X-Axis travel (table long.): 31""
Y-Axis travel (saddle cross): 17"
Z-Axis travel (head vert.): 23.5"
Max table load: 1320 lbs
Quill Travel: 5"
Quill feeds: 002, .004, .006 IPR
Distance, spindle nose to table: 0" to 24"
Taper in spindle: 40
Spindle speeds (variable): 70 to 4200 RPM
Spindle drive motor: 3 HP AC
Current Electrical Arrangement: 440/3/60
Currently under power: Yes

Equipped With

Southwestern Industries A.G.E 2 CNC Control (Auto Geometry Engine)
Pneumatic Draw Bar
Precision Ball Screws
Handwheel For Manual Positioning
