Used 1998 TOSHIBA BTD-110R16 | Boring Mills, Horizontal, Table Type

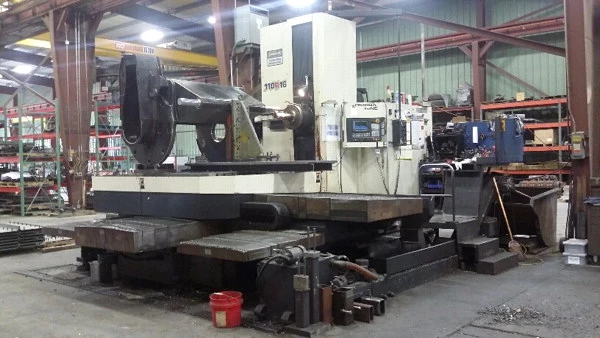

1998 Toshiba Model BTD 110R16 4.3" CNC Table Type Horizontal Boring Mill w/ATC

Spindle Diameter: 4.33"
Taper In Spindle: #50
Milling Spindle Diameter: 8.86"
Vertical Travel of Headstock, Y-Axis: 70.86"
Table Cross Travel, X-Axis: 98.42"
Spindle Travel, Z-Axis: 19.68"
Saddle Travel, W-Axis: 57.08"
Spindle Speeds: 5-3000 RPM
Spindle Motor: 40/30 HP
Table Size, Built-in Rotary: 55.12" x 62.99"
Table Index: 0.001 Degree
Table Capacity: 13,860 Lbs
Feed Rates: 0.04"-236.2"
Rapid Traverse: 472 IPM
Floor Space, L x W: 248.4" x 201.9"
Overall Height: 157.5"
Machine Weight: 61,600 Lbs

Equipped with:

Tosnuc 888 CNC Control
Helical Interpolation & Synchronous Tapping
60 Station Automatic Tool Changer
55.12" x 62.99" B-Axis Rotary Table
4-Way Bed Construction
Way Covers
Coolant System
Thru-Spindle Coolant
Flood Coolant
Extended Travels on X & Y Axes
Chip Conveyor
40 HP/30 HP Spindle Drive Motor
