Used L&J 36 | Presses, O.B.I.

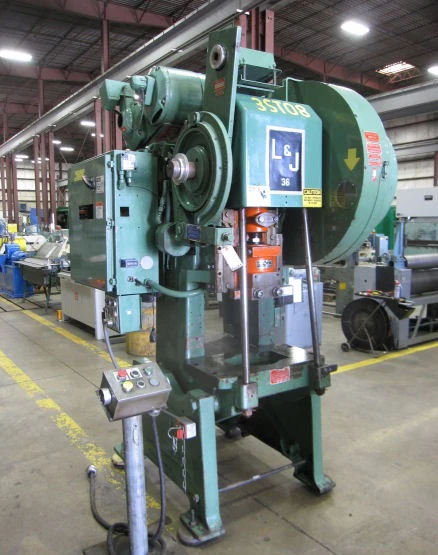

36 TON L & J O.B.I. PUNCH PRESS, Model no. 36

Air clutch & brake
Flywheel type
Stroke: 3"
Slide adjustment: 3"
Shut height S.D.A.U.: 11" to top of bed
Area of bed: 26-1/2" L-R x 15" F-B
Area of slide: 11-1/2" L-R x 9-1/2" F-B
Shank hole diameter: 1-1/2"
Throat depth: 8"
Opening through back: 14"
Floor to top of bed: 31-3/4"
S.P.M. approx.: 120 (variable)
EQUIPPED WITH: Free standing control with dual palm buttons
for run & emergency & top stop buttons
Pushbuttons for start - stop - fast - slow
Key selector switch for inch - single -
continuous
Rotary cam limit switches
Lincoln automatic oil lubrication
Knockout slot in slide
Air surge tank
5 HP 1710 RPM 208/440/3/60 Reliance variable
speed drive motor
Weight approx. 6000#
Overall dimensions approx. 58" L-R x 64" F-B x 97" H
