Used MINSTER #6 | Presses, O.B.I.

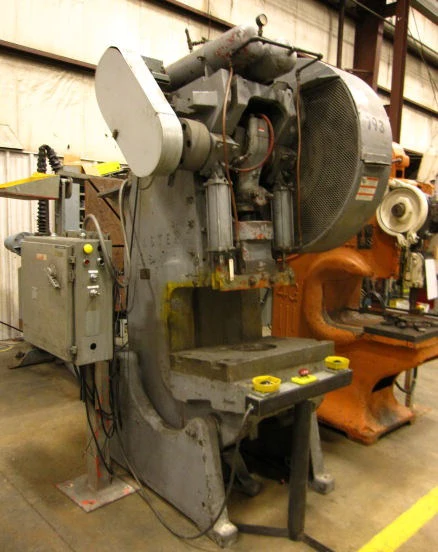

60 TON MINSTER O.B.I. PUNCH PRESS, Model no. 6

Air clutch & brake
Air counterbalance
Flywheel type
Stroke: 3"
Slide adjustment: 3"
Shut height S.D.A.U.: 11-1/2" to top of bed
Area of bed: 32" L-R x 21" F-B
Bolster thickness: 4"
Area of slide: 9" L-R x 11" F-B
Shank hole diameter: 2"
Throat depth: 11"
Opening through back: 15"
Floor to top of bed: 32"
S.P.M. approx.: 90
EQUIPPED WITH: Free standing control with dual palm
buttons for run with emergency stop button
Rotary cam limit switches
Air surge tank
Knockout slot in slide
Inclining mechanism
5 HP 220/440/3/60 motor
Weight approx. 11,200#
Overall dimensions approx. 60" L-R x 74" F-B x 106" H
