Used BLISS 105 | Presses, Gap Frame (OBS)

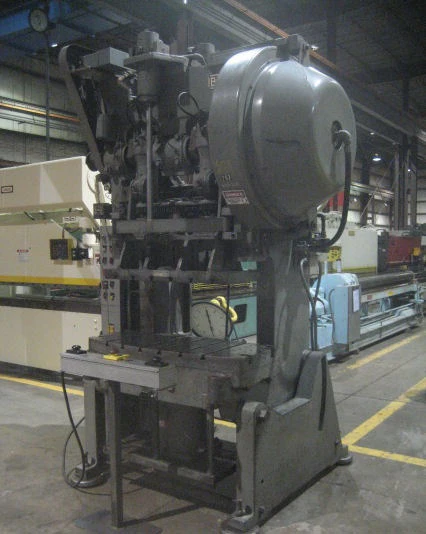

45 TON BLISS GAP FRAME DOUBLE CRANK PRESS
Model no. 105

Air clutch & brake; Air cushion; air counterbalances
Back geared type
Stroke: 5"
Slide adjustment: 3"
Shut height S.D.A.U.: 13-3/4" to top of bed
Area of bed: 48-1/2" L-R x 18" F-B
Bolster thickness: 2-1/4"
Area of slide: 38" L-R x 14" F-B (T-slotted)
Shank hole diameter: 2-1/4"
Throat depth: 9-1/2"
Opening through back: 33-1/2"
Floor to top of bed: 33-1/2"
S.P.M. approx.: 50
EQUIPPED WITH: Free standing control with
dual palm buttons for run &
emergency stop button
Electric foot switch
Bliss type "C" size 12-3 air cushion
Pushbuttons for start - stop -
continuous - set-up & top stop
Key selector switches for inch -
off - single - continuous - hand &
foot
(3) Knockout slots in slide
Rotary cam limit switches
Bijur automatic oil lubrication
Air surge tanks
Production counter
5 HP 1750 RPM 220/440/3/60 motor
Weight approx. 13,000#
Overall dimensions approx. 84" L-R x 67" F-B x 117" H
