Used 1991 PH HYDRAULICS OGF-40 | Presses, C-Frame

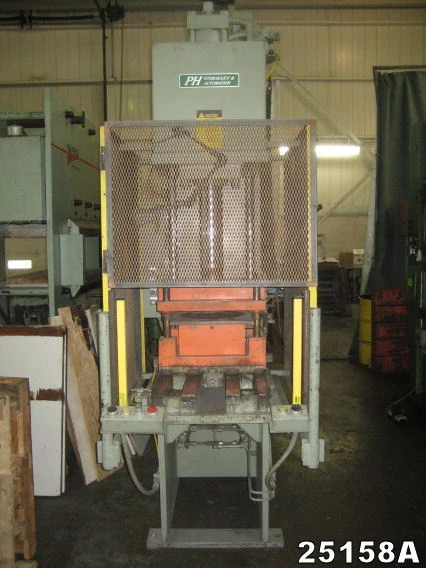

1991 40 TON PH HYDRAULIC C FRAME PRESS Model OGF-40

With 2-post guided slide & hydraulic shuttle table
Model OGF-40
Floor standing
Bed area: 30" L-R x 26" F-B
Sliding table: 22" L-R x 16" F-B
Stroke: 0 - 24" maximum
Daylight opening (total): 37" maximum
Daylight opening over sliding table: 30" maximum
Throat depth: 15"
Ram diameter: 7"/5" @ 2078 PSI - 40 tons
Floor to top of bed: 39"
Power unit: Vickers hydraulic pump, driven by
20 HP 1740 RPM 230/460/3/60 motor
Speeds approx.: 285"/min. - closing
145"/min. - pressing to 40 tons
295"/min. - return
Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
*Safety light curtain
Pressure gauge
Weight approx. 8,500#
Overall dimensions approx. 40" L-R x 83" F-B x 121" H
