Used CINCINNATI 0-12 | Millers, Production, Simplex (Hor.)

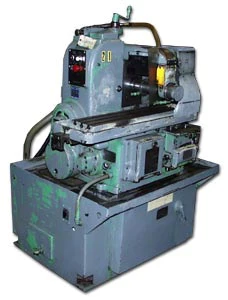

Cincinnati Model 012 Rise and Fall Horizontal Production Mill

Table Size .......................... 11 x 36

Working Surface...................... 6.5 x 27.5"

Table Travel X-Axis ................. 12"

Power Vertical Spindle Carrier Movement...7.5"

Adjustment of Quill Travel .............. 1"

Spindle Nose ............................ #40 NS

Spindle Speeds (16) ..................... 80 - 3000 RPM

Feeds left/right (16).................... 1/2 to 20 IPM

Electrics ............................... 440 Volt

Spindle Motor ........................... 2 HP

Weight................................... 1800 LBS

Equipped With:

Over arm and Arbor Support

#40 Taper Arbor with Spacers

Electrical Disconnect

Change Gears (10)
