Used CARLTON 3A | Drills, Radial

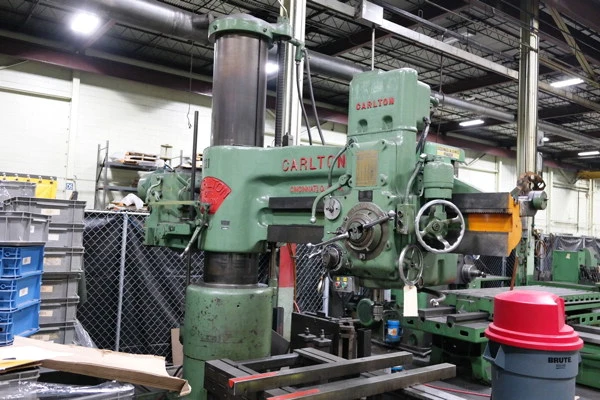

Carlton Model 3A 5' x 15" Radial Arm Drill

Length of Arm: 5'
Diameter Of Column: 15"
Spindle Travel: 18"
Length of Spindle Bearing Support: 29 1/8"
Bearing Can Support: 60000 lbs
Face Of Column to C/L Spindle Min: 60" Max
Face Of Column to C/L Spindle Min: 15" Min
Spindle Radius Max: 5'11"
Spindle Radius Min: 26"
Spindle to Base Max: 5'6"
Spindle to Base Min: 10 1/2"
Working Surface To Base Width: 3'6"
Working Surface To Base Length: 5'5"
Height of Base: 8"
Vertical Travel of Spindle in Head: 18"
Spindle Dia: 3 3/16"
Taper: #5
Traverse of Arm on column: 3' 1 1/2"
Traverse of Head on Arm: 4'9"
Drills to Center of Circle: 10'
Swing of Arm: 7'4"
Feeds and Tap Leads: 18 changes-.004-.0125" / include 8 - 11.5 - 14-18 tap
Spindle Speeds: (36) 15-1500 RPM

Approximate Weight: 17,000 Lbs.
