Used 1996 SAACKE UWII-CNC-5A | Grinders, Tool & Cutter

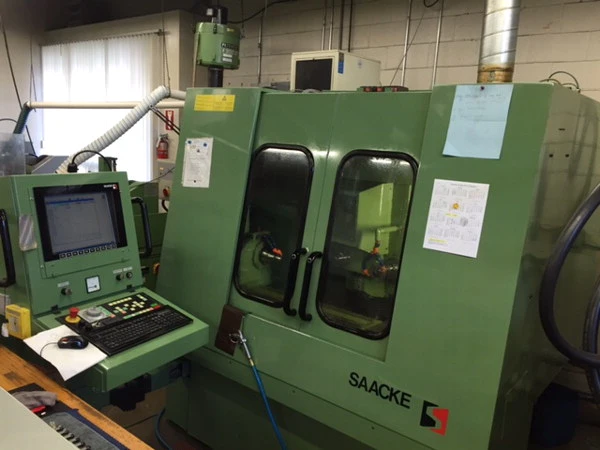

1996 Saacke Model UWII-CNC-5A 5 Axis CNC Tool & Cutter Grinder

Tool max diameter : 250 [mm] / 9.84"
Tool max length : 350 [mm] / 13.77"
Centres height : 175 [mm] / 6.8"
X Axis: 500 [mm] / 19.68"
Y Axis: 250 [mm] / 9.84"
Z Axis: 300 [mm] / 11.8"
B Axis: 300 [mm] / 11.8"
Continuous A axis (part holder headstock) :360 000 positions
Grinding wheel diameter : 125 [mm]/ 4.9"
Grinding wheel holder spindles diameter :80 [mm]/ 3.1"
Parts holder headstock type : ISO 50
Resolution on X, Y, Z axis : 0,0001
Resolution on A, B axis : 0,0001
Rrinding spindle power : 9 kW / 12HP
Machine weight : 2 700 [kg] / 6000 Lbs

Equipped With

NUM CNC Control
Numroto Software
