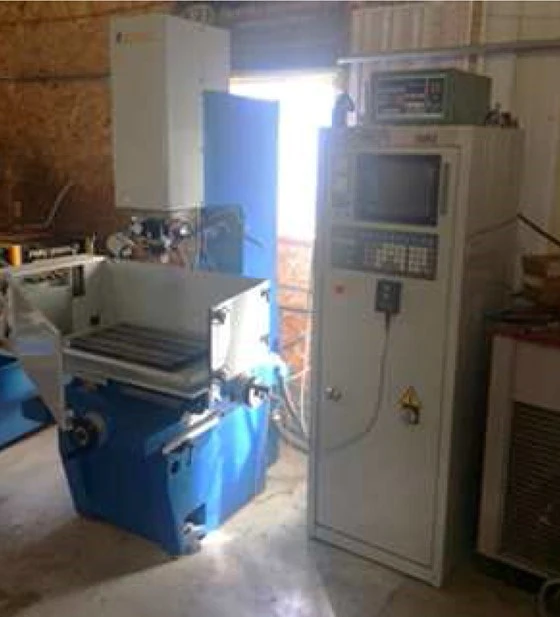

2001 Chmer Model CM-434Z Ram Sinker Type Electrical Discharge Machine
2001 Chmer Model CM-434Z Ram Sinker Type Electrical Discharge Machine
Table size (WxD): 650x400/25.5x15.7
Table travel (XxY): 400x300/15.7x11.8
U,V axis travel (OB): 5mm
Work tank size (WxDxH): 41.3x23.6x11.8
Ram travel (Z1): 350/13.8
Distance form RAM platen work table: 7.8~21.6
Max. electrode weight (without OB): 100/220
Max. electrode weight (with OB): 33 Lbs
Max. workpiece weight: 1650 Lbs.
Outside dimensions (WxDxH): 55x52.7x86.2
Weight: 3080 Lbs.
Equipped with:
Chmer Orbit Cut COC-200A
Erowa EDM Tooling
