1985 GRAZIANO TORTONA SAG22
Lathes, Engine1985 Graziano Tortona Model SAG 22 22" x 60" Geared Head Engine Lathe

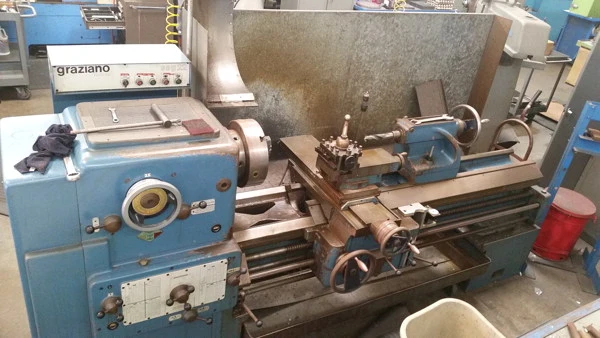

1985 Graziano Tortona Model SAG 22 22" x 60" Geared Head Engine Lathe
Capacity: 22" x 60"
Swing: 22"
Distance Between Centers: 60"
Swing Over Cross Slide: 14.84"
Hole Thru Spindle: 3-1/2"
Spindle Mount: Camlock 8
Tailstock Morse Taper: No. 5 MT
Diametrical Pitches: 6 - 48
Modular Pitches: 0.25 - 2.75"
Feeds: .00356 - .01492"
Threads (Metric): 0.375 - 5.5mm
Threads (Inches): 3 - 24 TPI
Spindle Speeds: 30 - 1,500 RPM
Horsepower: 15 H.P.
Current Electrical Arrangement: 220/3/60
Equipped With
Tailstock
Dial Thread Chasing Attachment
Dorian Quick Change Tool Post
Coolant Pump and Piping
Chip Pan Bed
Chuck
(4) Way Tool Post
