Used 2009 SMTW MBA 1432 | Grinders, Cylindrical, Universal

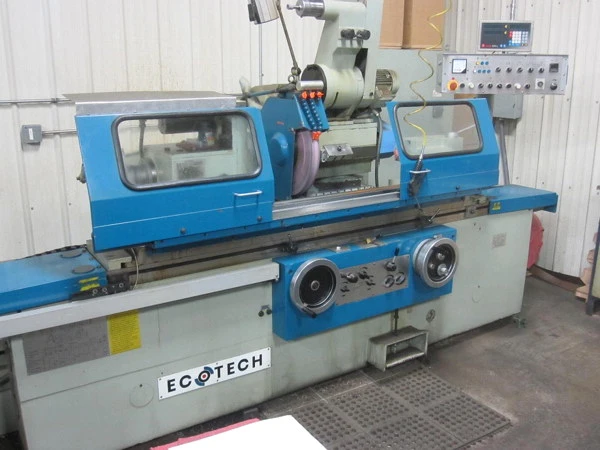

2009 SMTW/Ecotech Model MBA1432 12.6" x 40" Universal Cylindrical Grinder

Maximum Swing Over Table: 12.6"
Maximum Distance between Centers: 40.0"
Table Load Capacity between Centers: 400 lbs.
Table Traverse Speed: 4 - 157 ipm
Headstock Taper: 5 MT
Tailstock Taper: 4 MT
Headstock RPM (Variable Speed): 30 - 260 RPM
Grinding Wheel Head RPM: 1670 RPM
Wheel Head HP: 7.5 HP
Maximum Grinding Wheel Diameter: 20" x 2" x 8"
Machine Weight: 8,200 lbs.
Machine Voltage: 220/3/60
Floor Space Required: 141" x 96" x 87"

Equipped With

Swing Down Internal ID Attachment (10,000 RPM Spindle)
Newall E7-L 2 Axis Digital Readout ( .0001" )
Coolant System with Paper Filter
Hydrostatic Spindle Bearings, Variable Speed Universal Work Head,
Bison Set-Tru 6 Jaw Chuck
8" 3 Jaw Chuck
(1) 3 Point Roller Bearing Steady Rest
(1) 2 Point Roller Bearing Steady Rest
(2) Table Mount Diamond Dressers
Halogen Machine Lamp, Wheel Balancing Stand
Miscellaneous Grinding Arbors and Wheels, Flanges, and Centers
Manuals and Documentation
