Used 1996 BRIDGEPORT-ROMI EZ PATH | Lathes, CNC

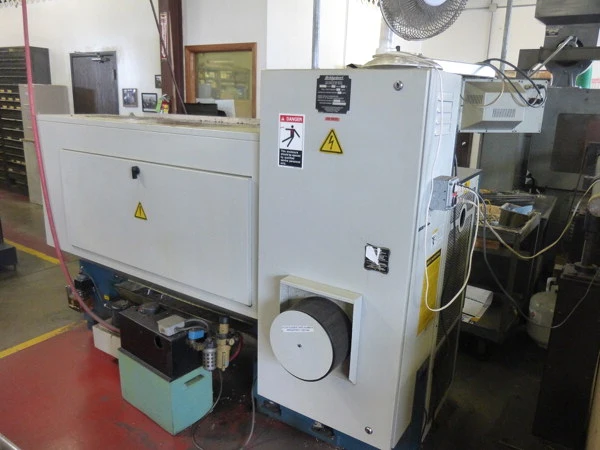

1996 ROMI Bridgeport EZ Path CNC Lathe

Swing over bed - 16.5"
Swing over cross slide - 8.6"
Center distance - 40"
Spindle nose - A2-5
Spindle bore - 1.97"
Spindle speeds:
High Range (12) - 67 to 3000
Low Range (12) - 37.5 to 1500
Rapid traverse - 250 IPM
Tailstock quill travel - 6.3"
Tailstock quill diameter - 2"
Tailstock quill taper - 4MT
Spindle motor, 2 Speed Motor - 4 / 8 HP
Current Electrical Arrangement: 240/3/60
Floor space, approx - 68" x 110"
Weight, approx - 4000 lbs.

Equipped with:
EZ Path Control
Tool Post
8" 3-Jaw Chuck
Coolant Pump and Tank
Auto Lube
Electronic Hand Wheels
Tailstock
