Used 1991 OKUMA CADET LNC-8 | Lathes, CNC

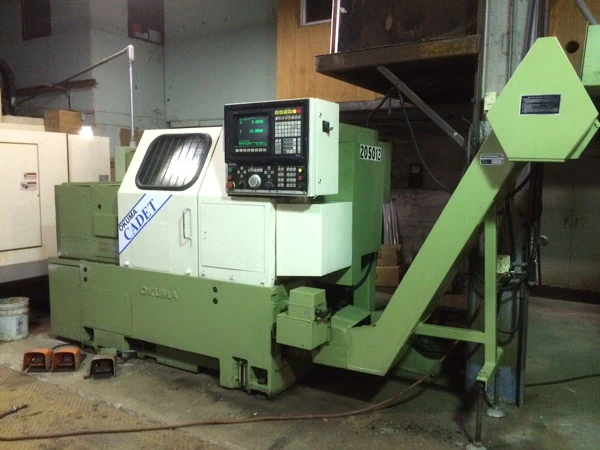

1991 Okuma Model Cadet LNC-8 2-Axis CNC Lathe

Maximum swing over saddle: 15.75"
Maximum Turning Diameter: 9.84"
Maximum Turning Length: 19.68"
X-Axis Travel: 6.89"
Z-Axis Travel: 20.4"
Spindle Nose Type: A2-6
Spindle Bore: 2.20"
Spindle Bar Capacity: 1.8"
Spindle Speeds (Infinitely Variable): 75-4200 RPM
Feed Rates: .0001-39.37 IPR
Rapid Traverse: 472 IPM
Turret Positions: 12 VDI
Tailstock Taper: MT#5
Main Motor: 10 HP

Equipped with:

OSP 5020L Control
Gcode Programming
Wired for Bar Feeder
8" 3-Jaw Power Chuck
Hennig Chip Conveyor
Tool Setter
5 MT
Manuals
