Used 1995 MAZAK SQT15MS MARK LL | Lathes, CNC

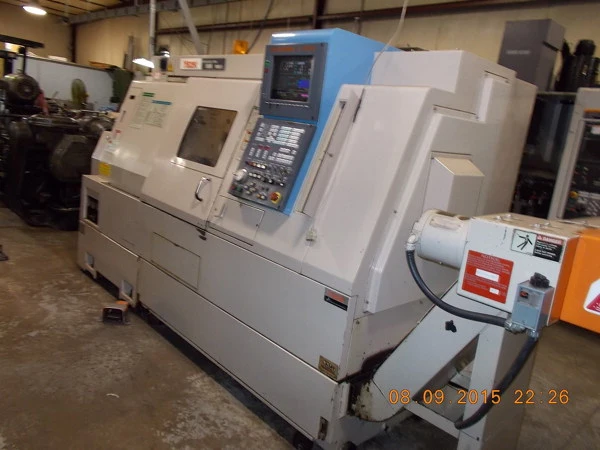

1995 Mazak Model Super Quick Turn SQT15M Mark II Live Tool 3 Axis CNC Lathe

Maximum Swing: 20.91"
Maximum Machining Diameter: 11.81
Maximum Machining Length: 20.90"
Spindle Bore Diameter: 2.4"
Maximum Bar Work Diameter: 2"
Spindle Speed Range: 35-5000 RPM
X-Axis Stroke: 7.125"
Z-Axis Stroke: 22.75"
Turret Tool Capacity: 12 Position
Turret Index Time (1 Step/Full Step):0.5 sec / 1.4 sec
Rotary Tool Speed Range: 120-3000 RPM
Rapid Traverse Rate, X & Z Axis: 1180 IPM
Rapid Traverse Rate, C-Axis: 100 RPM
Main Spindle Motor, 30 Min. Rating: 20HP
Rotary Tool Motor, 10 Min. Rating: 4HP
Current Electrical Arrangement: 230/460/50/60


Equipped With

Mazatrol T-plus CNC Controls. Live milling . 8" 3-Jaw chuck
Full C-Axis Main Spindle, 12-Position Turret. Tool Eye
Parts Catcher. Chip Conveyor. Coolant System
Brand new MWK Brand 8" 3-jaw hydraulic chuck
Programmable Tailstock,

Approximate Weight: 9,702 Lbs.
