Used 1990 LUCAS 542B84 | Boring Mills, Horizontal, Table Type

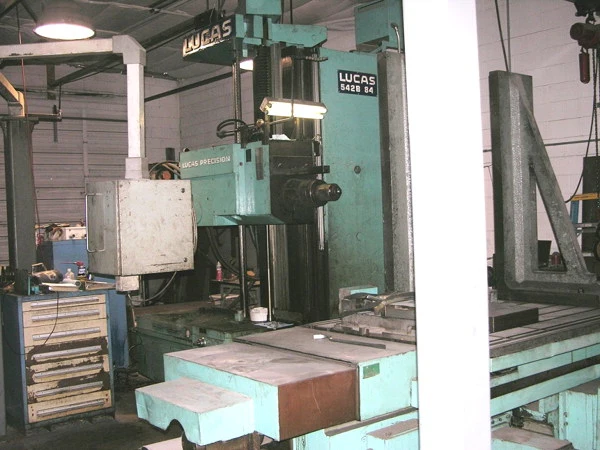

Lucas Model 542B84 CNC Table Type Horizontal Boring Mill

Spindle Diameter: 5"
Working Surface of T-Slotted Table: 46" x 86"
Table Load Capacity: 12,000 kg
X-Axis Travel: 84"
Y-Axis Travel: 72"
Z-Axis Travel: 27"
W-Axis Travel: 51.6"
Spindle speeds (rpm): 10- 1200 RPM
Spindle Taper: 50
Main Motor Drive: 30HP

Equipped With

Allen Bradley 8400 CNC 4-AXIS CONTROL
Stainless Steel Way Covers
Built New: 1970 - Retrofit And Rebuild 1990
Angle Plates (Available at Extra Cost)
