Used LOWN IP G525-74 | Rolls, Bending & Curving

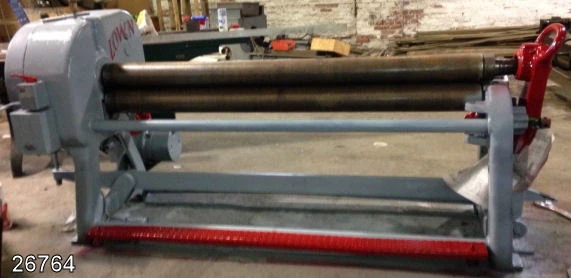

6 FT. X 11-13 GA. LOWN SLIP ROLL,Model no. IP G525-74

Capacity: 6' x 11-13 ga. mild steel
Roll diameter: 5-1/2"
Roll length: 74"
Speeds approx.: 21 FPM
Pass line: 30"
EQUIPPED WITH: Manual drop end with automatic balance bar
Pushbuttons for start - stop
Joystick for forward - reverse - off
Manual bottom roll adjustment
Manual rear roll adjustment via hand wheel with
position indicators
Full length emergency stop treadle
Longitudinal groove in rear roll
3 HP 1760 RPM 208/220/440/3/60 brake motor
Weight approx. 3500#
Overall dimensions approx. 106" L-R x 45" F-B x 52" H
