Used LOWN B-798 | Rolls, Bending & Curving

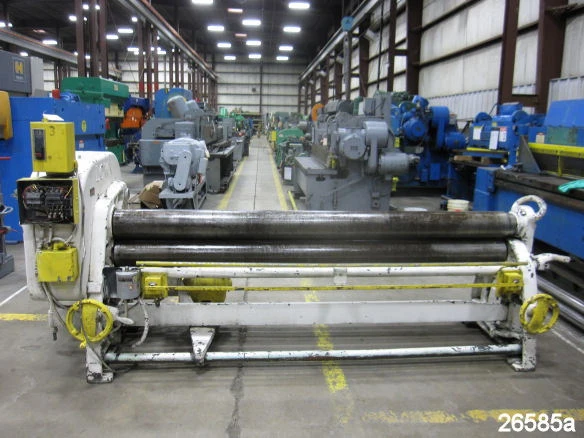

8 FT. X 3/16" / 5/32" LOWN SLIP ROLL, Model no. B-798

Model no. B-798
Capacity: 8' x 3/16" / 5/32" mild steel
Roll diameter: 7"
Roll length: 98"
Pass line: 30"
Speeds approx.: 19 FPM
EQUIPPED WITH: Manual drop end with automatic balance bar
Power rear roll adjustment with control &
position indicators
Manual bottom roll adjustment via hand wheels
Pushbuttons for start - stop
Full length treadle for forward - reverse
Emergency stop treadle
Longitudinal grooves in rear roll
3 HP 1740 RPM 220/440/3/60 rear roll
adjustment motor
7.5 HP 1750 RPM 220/440/3/60 motor
Weight approx. 6,000#
Overall dimensions approx. 134" L-R x 55" F-B x 59" H
